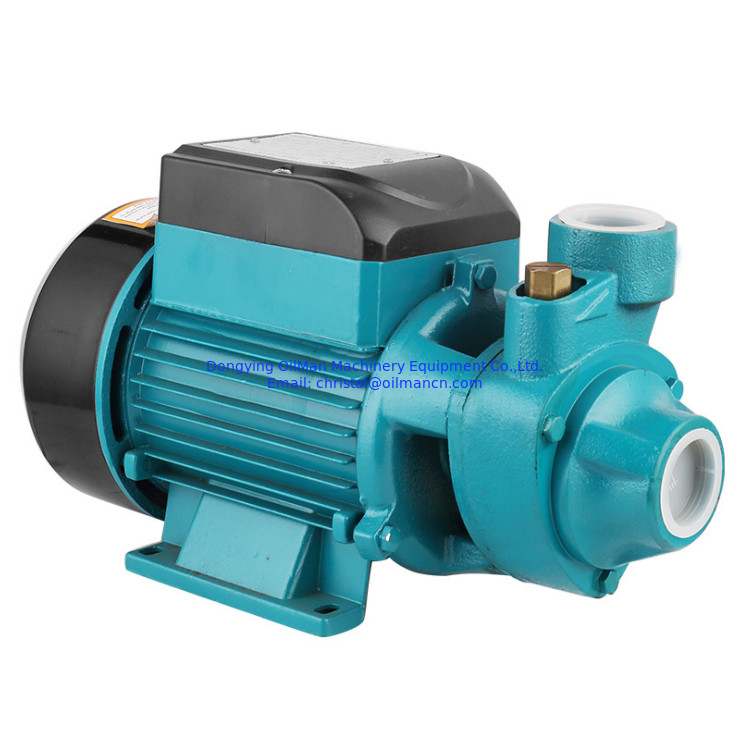

100% Copper Wire 0.5hp High Pressure Motor QB60 Electrical Vortex Water Pump
Product Details:
| Place of Origin: | China |
| Certification: | ISO |
| Model Number: | QB60, QB70, QB80, QB90 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD15-45/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per month |
|
Detail Information |
|||
| Product Name: | 100% Copper Wire 0.5hp High Pressure Motor QB60 Electrical Vortex Water Pump | Keywords: | Electrical Vortex Water Pump |
|---|---|---|---|
| Application: | Family Homes, Food And Beverage Industry, Irrigation And Agriculture | Frequency: | 50Hz, 60Hz |
| Outlet Size: | 1''*1'' | Voltage: | 220V, 110V |
| Highlight: | Copper Wire Hydraulic Submersible Water Pump,Hydraulic Submersible Water Pump 0.5hp,qb60 water pump |
||
Product Description
100% Copper Wire 0.5hp High Pressure Motor QB60 Electrical Vortex Water Pump
100% Copper Wire 0.5hp High Pressure Motor QB60 Electrical Vortex Water Pump
PRODUCT INFORMATION :
Vortex water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small utoclave tanks or by hydrosphere units. For the correct function of the pump, use clean water or non -aggressive liquid only, without sand or other solid impurity.
PUMP
Rust-free copper insert prevent impeller's block when starting after the pump is unused for a long time.
Brass impeller with evenly arranged radial vanes.
Max.liquid temperature:35℃ or 60℃
Max.Suction:+8m
Cast iron pump body and support
MOTOR
Motor with copper winding
Shaft:Stainless steel welded shaft/45# steel
Insulation class:B or F
Protection class:IPX4
Max. Ambient temperature:+40 ℃
Cooling:External ventilation
Technical Parameters:
| TYPE | POWER KW HP |
H MAX m |
Q MAX l/min |
SIZE inch |
S HEAD M |
N. W Kg |
PACKING QTY |
| QB60 | 0.37 0.5 | 36 | 36 | 1″×1″ | 9 | 5.5 | 3400 |
| QB70 | 0.55 0.75 | 50 | 50 | 1″×1″ | 9 | 8.8 | 2200 |
| QB80 | 0.75 1.0 | 60 | 60 | 1″×1″ | 9 | 9 | 2200 |
| QB90 | 0.75 1.0 | 60 | 60 | 1.5″×1.5″ | 9 | 9 | 2200 |
Application:
If any needs, pls contact us freely:
