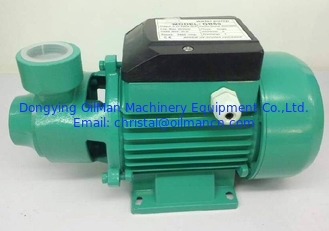

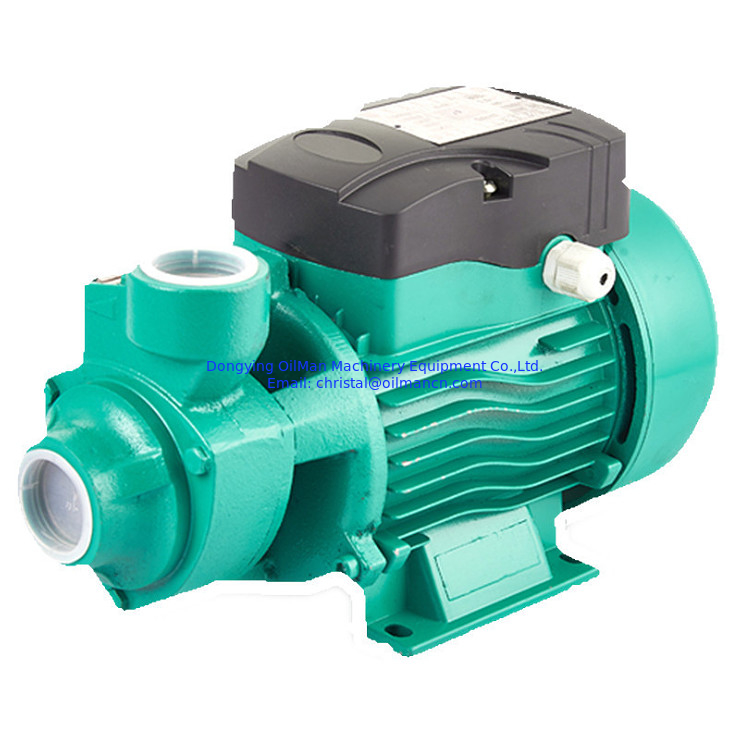

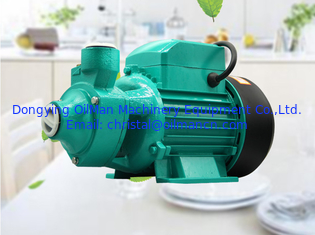

Best Price 1 Inch 220 Volt Qb60 0.5 Hp 0.75hp 1hp Domestic Garden Electric Motor Vortex Water Pump
Product Details:
| Place of Origin: | China |
| Certification: | ISO |
| Model Number: | QB60, QB70, QB80, QB90 Water Pump |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD15-45/pc |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 10-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 pieces per month |
|
Detail Information |
|||
| Product Name: | Best Price 1 Inch 220 Volt Qb Qb60 0.5 Hp 0.75hp 1hp Rate Domestic Garden Electric Motor Vortex Water Pump For House | Keywords: | QB60 Water Pump |
|---|---|---|---|
| Application: | Family Homes, Clean Water | Frequency: | 50Hz, 60Hz |
| Outlet Size: | 1''*1'' | Voltage: | 220V, 110V |
| Highlight: | 220 Volt Hydraulic Submersible Water Pump,Hydraulic Submersible Water Pump 0.75hp |
||
Product Description
Best Price 1 Inch 220 Volt Qb Qb60 0.5 Hp 0.75hp 1hp Rate Domestic Garden Electric Motor Vortex Water Pump For House
Best Price 1 Inch 220 Volt Qb Qb60 0.5 Hp 0.75hp 1hp Rate Domestic Garden Electric Motor Vortex Water Pump For House
PRODUCT INFORMATION :
Vortex water pumps able to offer high pressure in relation to comparatively low powers and which have particularly steady operating curves. They are qualified in domestic fittings, to increase the system pressure in aqueducts and for automatic water distribution by small utoclave tanks or by hydrosphere units. For the correct function of the pump, use clean water or non -aggressive liquid only, without sand or other solid impurity.
PUMP
Rust-free copper insert prevent impeller's block when starting after the pump is unused for a long time.
Brass impeller with evenly arranged radial vanes.
Max.liquid temperature:35℃ or 60℃
Max.Suction:+8m
Cast iron pump body and support
MOTOR
Motor with copper winding
Shaft:Stainless steel welded shaft/45# steel
Insulation class:B or F
Protection class:IPX4
Max. Ambient temperature:+40 ℃
Cooling:External ventilation
Technical Parameters:
| TYPE | POWER KW HP |
H MAX m |
Q MAX l/min |
SIZE inch |
S HEAD M |
N. W Kg |
PACKING QTY |
| QB60 | 0.37 0.5 | 36 | 36 | 1″×1″ | 9 | 5.5 | 3400 |
| QB70 | 0.55 0.75 | 50 | 50 | 1″×1″ | 9 | 8.8 | 2200 |
| QB80 | 0.75 1.0 | 60 | 60 | 1″×1″ | 9 | 9 | 2200 |
| QB90 | 0.75 1.0 | 60 | 60 | 1.5″×1.5″ | 9 | 9 | 2200 |
Application:
