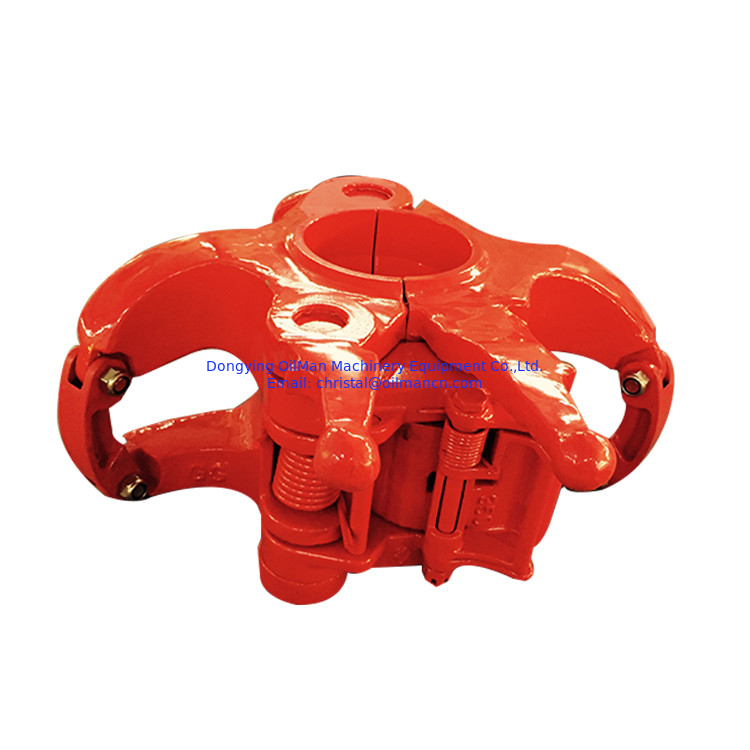

150 Ton Center Latch Elevators with 18 degree taper shoulder
Product Details:
| Place of Origin: | China |
| Certification: | API 8A/8C |
| Model Number: | DD & DDZ Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD150-800/piece |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 pieces per month |
|
Detail Information |
|||
| Product Name: | 150 Ton Center Latch Drill Pipe Elevator For 5 " IEU & 4 1/2" EU Drill Pipe | Keywords: | Drill Pipe Elevator |
|---|---|---|---|
| Application: | Oil Drilling | Warranty: | One Year |
| Material: | Alloy Steel | Processing Type: | Forging |
| Highlight: | 150 Ton Center Latch Elevators,Taper Shoulder Center Latch Elevators |
||
Product Description
150 Ton Center Latch Drill Pipe Elevator For 5 " IEU & 4 1/2" EU Drill Pipe
150 Ton Center Latch Drill Pipe Elevator For 5 " IEU & 4 1/2" EU Drill Pipe
Model DD center latch elevators with square shoulder are suitable for handling drill collars, casings and tubing. The load ranges from 150 tons a to 350 tons and the size ranges from 2-3/8” to 5- 1/2”. The products shall be designed and manufactured according to API Spec 8A/8C specification for drilling and production hoisting equipment.
Model DDZ series elevators are center latch elevators with 18 degree taper shoulder, applied in handling the drill pipe and drilling tools, etc. The load ranges from 100 tons to 750 tons and the size ranges from 2-3/8” to 6-5/8”. The products shall be designed and manufactured according to the requirements in API Spec 8A/8C. Specification for drilling and production hoisting equipment.
Features:
1.Size: 2-3/8" to 6-5/8"
2.Rated Capacity: 150t to 750t
3.Usage: Drill Pipe, Casing, Tubing
4.Standard: API 8A/8C
5.Type: DD, DDZ, CD, CDZ, SJ, TA, SX, SLX, Y series, etc.
Technical Parameter for DD type Elevator:
| Model | Size (in) |
Rated Cap. (ton) |
||
| Drill Pipe | Casing | Tubing | ||
| DD Type | ||||
| DD-150 | 2-3/8 ~ 5-1/2 | 4-1/2 ~ 5-1/2 | 2-3/8 ~ 4-1/2 | 150 |
| DD-200 | 2-3/8 ~ 5-1/2 | 4-1/2 ~ 5-1/2 | 2-3/8 ~ 4-1/2 | 200 |
| DD-350 | 2-3/8 ~ 5-1/2 | 4-1/2 ~ 5-1/2 | 2-3/8 ~ 4-1/2 | 350 |
Technical Parameter for DDZ type Elevator:
| Model | Size (in) | Rated Cap. |
| DDZ Type | ||
| DDZ-100 | 2-3/8 ~ 5 | 100 |
| DDZ-150 | 2-3/8 ~ 5-1/2 | 150 |
| DDZ-250 | 2-3/8 ~ 5-1/2 | 250 |
| DDZ-350 | 3-1/2 ~ 5-7/8 | 350 |
| DDZ-500 | 3-1/2 ~ 6-5/8 | 500 |
| DDZ-750 | 4 ~ 6-5/8 | 750 |
