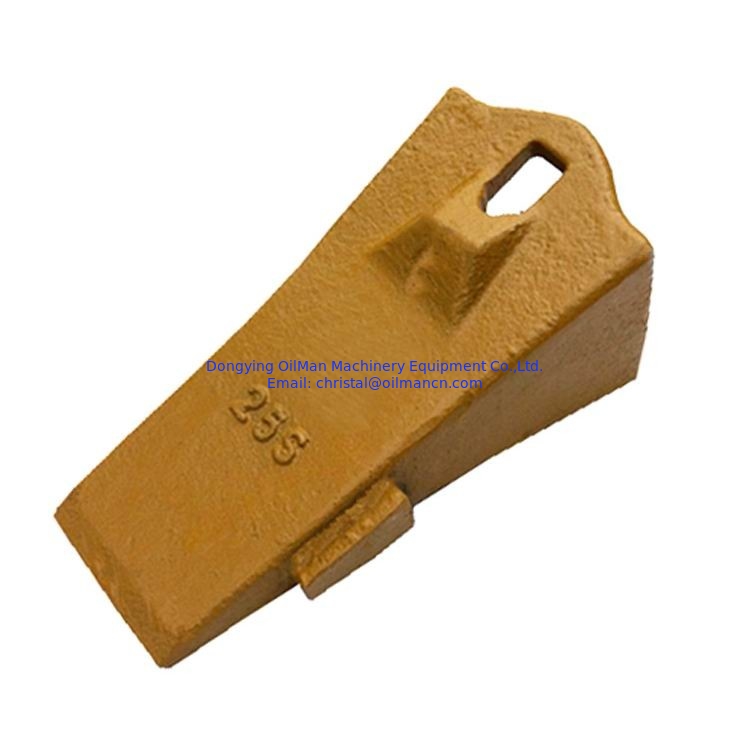

18S 22S 25S 35S 40S Excavator Bucket Teeth Tooth Point And Adapter
Product Details:
| Place of Origin: | China |
| Brand Name: | OilMan |
| Certification: | ISO |
| Model Number: | 18S, 22S, 25S, 35S, 40S... |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD5-20/pc |
| Packaging Details: | Export wooden case |
| Delivery Time: | 15-25 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 pieces per month |
|
Detail Information |
|||
| Product Name: | 18S 22S 25S 35S 40S Excavator Bucket Teeth Tooth Point And Adapter | Keywords: | Bucket Teeth |
|---|---|---|---|
| Impact Value: | >20J | Material: | Alloy Steel |
| Hardness: | 48-52HRC | Bucket Type: | Bucket Teeth |
| Highlight: | Excavator Bucket Teeth Adapter,Excavator Bucket Teeth Tooth Point,Excavator Bucket Tooth Adapter |
||
Product Description
18S 22S 25S 35S 40S Excavator Bucket Teeth Tooth Point And Adapter
Various cutting tools at OILMAN, perfectly matched to different rotary digging machine types , ensure maximum performance of the equipment. The design of the picks varies between the different types depending on the application field and range. The composition and geometry of the teeth should be adjusted to the required applications. And the highest possible economic efficiency is achieved by choosing the correct pick. This depends on the anticipated loads and acting wear mechanism.
E S C0 BUCKET TEETH
| P/N | TYPE | Model | U/W KG | A /mm | B/mm | C/mm | D/mm | A1/mm | B1/mm | C1/mm | Φholes |
| 25T | DRILLING TOOTH | 2.2 | 80 | 74 | 180 | 64 | 62 | 57 | 83 | 11.5 | |
| 25T | ADAPTER | 3.25 | 69 | 70 | 193 | 61 | 56 | 81 | 13 | ||
| 25S | TOOTH | 25S | 2.1 | 79 | 75 | 178 | 59 | 63 | 55 | 89 | 11 |
| 3806-25(25mm) | ADAPTER | 25S | 4.7 | 73 | 82 | 268 | 61 | 54 | 87 | 11 | |
| 30S | TOOTH | 30S | 2.5 | 91 | 74 | 182 | 72 | 76 | 59 | 85 | 12 |
| 25-30 (30mm) | ADAPTER | 30S | 5.1 | 89 | 79 | 280 | 71 | 55 | 85 | 11 | |
| 35S | TOOTH | 35S | 4.3 | 107 | 96 | 211 | 92 | 88 | 68 | 102 | 11.5 |
| 157-35(35mm) | ADAPTER | 35S | 9.6 | 103 | 97 | 345 | 81 | 67 | 100 | 13 | |
| 3803-35(10mm) | ADAPTER | 35S | 7 | 104 | 90 | 320 | 80 | 60 | 102 | 13 | |
| 40S | TOOTH | 40S | 7.1 | 123 | 102 | 250 | 95 | 98 | 81 | 117 | 16.5 |
| 3809-40(40mm) | ADAPTER | 40S | 14.1 | 120 | 106 | 410 | 95 | 82 | 113 | 15.5 | |
| 25-30PN | PIN | 30S | 0.1 | 20 | 9 | 74 |
Mechanical Property
| Material | Hardness | V-Norch | Tensile | Elongation | Yeild |
| T1 | 47-52HRC | akv>=16J | >=1499Mpa | >=3% | >=1040N/mm2 |
| T2 | 48-52HRC | akv>=20J | >=1500Mpa | >=4% | >=1100N/mm2 |
| T3 | 48-52HRC | akv>=20J | >=1550Mpa | >=5% | >=1100N/mm2 |
