API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear
Product Details:
| Place of Origin: | China |
| Certification: | API 7-1 |
| Model Number: | LM-T Type, DLM-T Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD150-1000/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 pcs per month |
|
Detail Information |
|||
| Product Name: | API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back Off Spear | Keywords: | Releasing Casing Spear |
|---|---|---|---|
| Application: | Fishing Tools For Oil Drilling | Material: | High-Grade Alloy Steel |
| Mandrel OD: | 3 5/32''~8 1/4'' | Fish ID: | 1 1/2''~12 23/32'' |
| Highlight: | Sliding Block Downhole Tool Releasing Spear,Back off Downhole Tool Releasing Spear |
||
Product Description

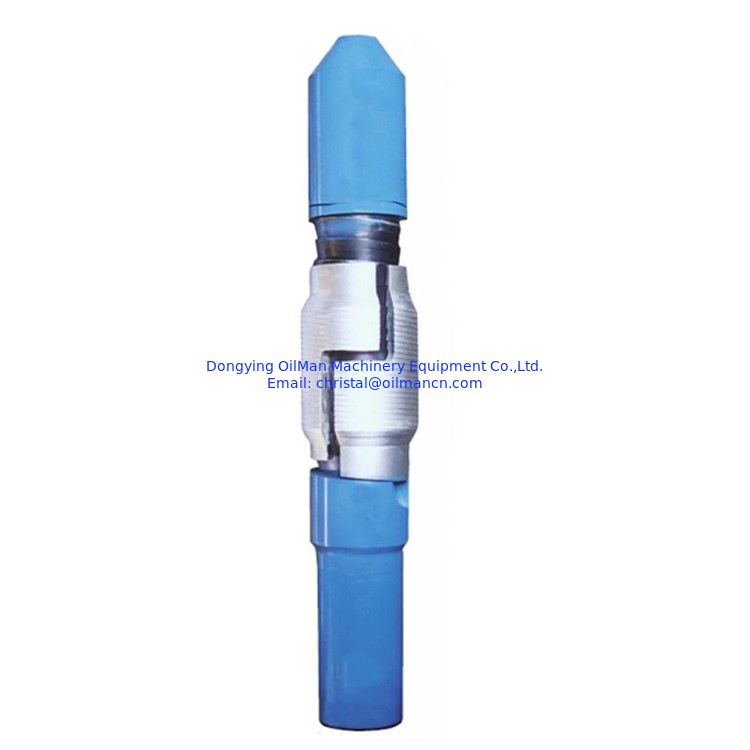

API 7-1 Downhole Tool Releasing Spear Sliding Block Spear Back off Spear
LM-T Releasing Spear is a fishing tool that can catch the drill pipe, tubing and casing from those tools' internal diameter. The releasing spear can be assembled with fishing spear packer, internal cutters, upper fishing jar and jar accelerator under different operation situation. If the fish cannot be pulled, the spear can be easily be released and disengaged.
The fishing tool is the most widely used tool for overhauling oil and water wells. There are many varieties and specifications of fishing tools. According to the types of falling objects in the well, they can be divided into five categories: spear tools, overshot tools, junk basket, hook fishing tools, and cutter tools.
As one of the full-fledged oil and gas equipment suppliers and the local China fishing tools manufactures, deenpu Group provides customers with various types of fishing tools.
| Specifications-Releasing Spear LM-T | ||||
| Model | Nut QD. (mm) | Catch Size (in) | LD (mm) | Code |
| MT48 | 35 | 1.9 | 8 | LQ2-100 |
| LM-T60 | 45 | 2 3/8 | 8 | LQ2-110 |
| LM-T73 | 54 | 2 7/8 | 10 | L02-120 |
| LM-T89 | 66 | 31/2 | 10 | LQ2-130 |
| LM-T 102 | 76 | 4 | 16 | LQ2-140 |
| LM-T114 | 88 | 4 1/2 | 16 | L02-150 |
| LM-T127 | 96 | 5 | 25 | LQ2-160 |
| LM-T 140 | 108 | 51/2 | 30 | L02-170 |
| LM-T 168 | 130 | 65/8 | 30 | LQ2-180 |
| LM-T178 | 145 | 7 | 50 | LQ2-190 |
| LM-T219 | 174 | 85/8 | 71 | LQ2-210 |
| LM-T245 | 174 | 95m | 71 | L02-220 |
| LM-T273 | 210 | 10 3/4 | 71 | L02-230 |
| LM-T273-1 | 222 | 10 3/4 | 71 | L02-260 |
| LM-T340 | 210 | 13 3/8 | 71 | LQ2-250 |
| LM-T340-1 | 222 | 13 3/8 | 71 | LQ2-240 |
| Specifications-Releasing Spear LM/B | ||||
| Model | NutO.D. (mm) | Catch size (in) | LD<nvn) | Code |
| LM-T48-B | 35 | 1.9 | 8 | L02-4810 |
| LM-T60-B | 47 | 2 3/8 | 10 | L02-6010 |
| LM-T73-B | 58 | 2 7/8 | 10 | L02-7310 |
| LM-T89-B | 71 | 3 1/2 | 12 | L02-8910 |
| LM-T102-B | 82 | 4 | 16 | L02-10210 |
| LM-T114-B | 92 | 4 1/2 | 19 | L02-11410 |
| LM-T127-B | 98 | 5 | 22 | L02-12710 |
| LM-T140-B | 108 | 5 1/2 | 25 | L02-14010 |
| LM-T168-B | 130 | 6 5/8 | 25 | 102-16810 |
| LM-T178-B | 145 | 7 | 50 | L02-17810 |
| LM-T219-B | 174 | 8 5/8 | 71 | L02-21910 |
| LM-T245-B | 174 | 9 5/8 | 71 | L02-24510 |
| LM-T273-B | 210 | 10 3/4 | 71 | L02-27320 |
| LM-T273-B1 | 222 | 10 3/4 | 71 | L02-27330 |
| LM-T340-B | 210 | 13 3/8 | 71 | L02-34020 |
h2: Features of LM-T Type Releasing Casing Spear
The fishing tool is the most widely used tool for overhauling oil and water wells. There are many varieties and specifications of fishing tools. According to the types of falling objects in the well, they can be divided into five categories: spear tools, overshot tools, junk basket, hook fishing tools, and cutter tools.
If any needs, pls contact us freely:
