Valve Seat Valve Assembly And Valve Insert For Mud Pump Parts
Product Details:
| Place of Origin: | China |
| Certification: | API 7K |
| Model Number: | F1600,F1300,F1000,F800,F500,GD PZ9/11, 12P160... |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD50-600/pc |
| Packaging Details: | Export wooden case |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
|
Detail Information |
|||
| Product Name: | Valve Seat Valve Assembly And Valve Insert For Mud Pump Parts | Keywords: | Valve Assembly Valve Seat |
|---|---|---|---|
| Application: | Oil Drilling Mud Pump | Material: | Forged Alloy Steel |
| Standard: | API 6 /7/8/10 | Max Pressure: | 7500 PSI |
| Hours Of Operation: | 400 To 600 Hrs | Types: | 3Web/4Web |
| Highlight: | Valve Insert Mud Pump Parts,Mud Pump Valve Seat,Forged Alloy Steel Valve Assembly |
||
Product Description

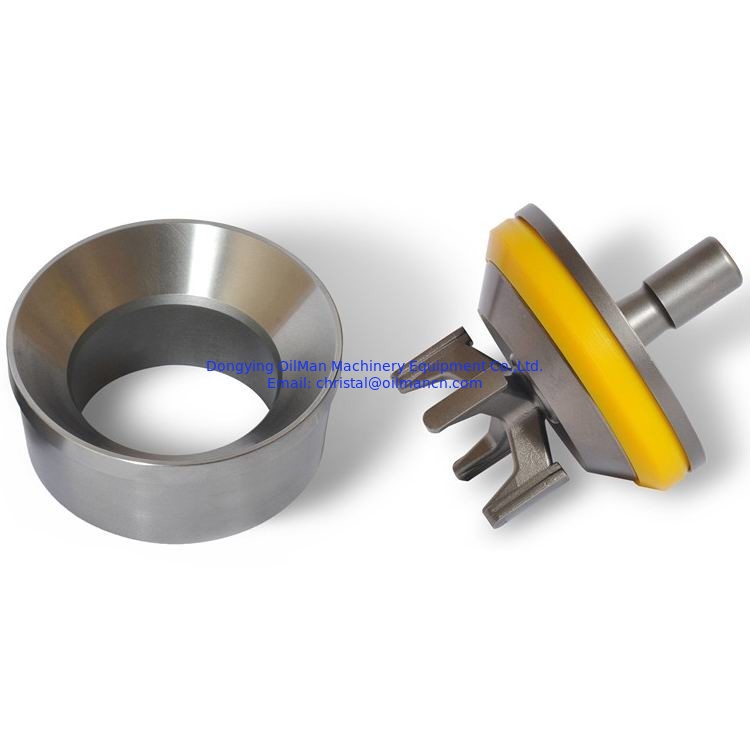

Valve Seat Valve Assembly And Valve Insert For Mud Pump Parts
Mud pump valve body and mud pump valve seat were produced according to API Specs as well as ISO9001 quality system by our company, were used high quality alloy steel 40CrNiMo, 20CrMnTi, processed with overall forging and carburizing, the surface hardness HRC≥60; They were produced under accurate calculation and numerical control lathe, which makes dimensions of valve body and seat perfectly match each other, also were used many times by land and offshore platforms. The service life of valve body and seat are 4-5 times more than ordinary ones, which improves the working efficiency and decrease the cost and working strength.
Mud pump valve assy include valve body, valve seat, valve insert (valve rubber ). As to valve insert (valve rubber) material, we can provide Nitrile rubber (NBR) valve insert, polyurethane (PU)valve insert, compound polyurethane and HNBR.
The following types of valve assemblies can be provided.
| Mud pump valve | Specifications | Mud pump API4# valve , API 5# valve, API 6# valve, API 7# valve, API 8# valve |
| Types | Rough-neck valve (full-open valve), three-web valve, four-web valve etc. | |
| Valves we provided can be exchangeable with these pump valves | BOMCO F500 mud pump, F800 mud pump, F1000 mud pump, F1300 mud pump, F1600 mud pump, F-1600HL high pressure mud pump, F-2200HL mud pump | |
| Honghua F-1300 mud pump, F-1600 mud pump, 3NB-1600HL mud pump, 3NB-2200HL mud pump | ||
| National Oilwell 7P-50 mud pump, 8P-80 mud pump, 9P-100 mud pump, 10P-130 mud pump, 12P-160 mud pump, 14P-220 mud pump | ||
| Emsco F-500 mud pump, F-800 mud pump, F-1000 mud pump, F-1300 mud pump, F-1600 mud pump, FB-1300 mud pump, FB-1600 mud pump | ||
| Gardner Denver PZ-7 mud pump, PZ-8 mud pump, PZ-9 mud pump, PZ-10 mud pump, PZ-11 mud pump | ||
| Ideco T-800 mud pump, T-1000 mud pump, T-1300 mud pump, T-1600 mud pump | ||
| Gardner Denver 7.5*10” FY FXD mud pump; 7.5*8” FY FXX mud pump , 5*10” FD FXD mud pump | ||
| Oilwell A-850-PT mud pump, A-1400-PT mud pump, A-1700-PT mud pump |
