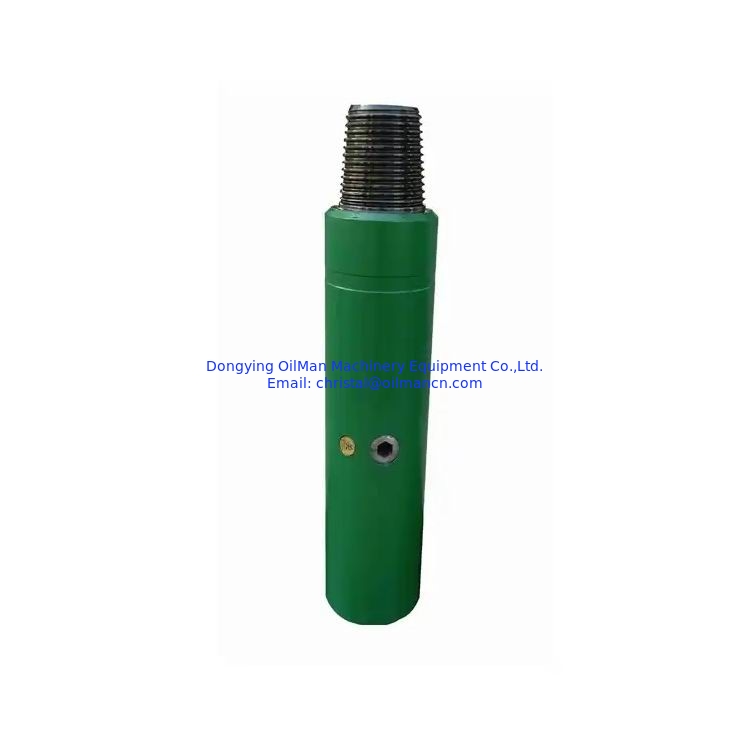

API 4 1/4" Upper And Lower Kelly Plug Cock Valve With NC IF REG Connection
Product Details:
| Place of Origin: | China |
| Certification: | API 7-1 |
| Model Number: | Kelly Cock Valve |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD1200-3000/pc |
| Packaging Details: | Export Wooden Case or Pallet |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pcs per month |
|
Detail Information |
|||
| Product Name: | API 4 1/4" Upper And Lower Kelly Plug Cock Valve With NC IF REG Connection | Keywords: | Kelly Valve |
|---|---|---|---|
| Application: | Oil Drilling | Warranty: | One Year |
| Working Pressure: | 5,000 / 10,000 / 15,000 PSI | Size: | 3-3/8" To 7-3/4" |
| Highlight: | kelly plug cock valve,api plug cock valve,oil drilling plug cock valve |
||
Product Description
API 4 1/4" Upper And Lower Kelly Plug Cock Valve With NC IF REG Connection
Kelly Valve is an effective manually operated ball type valve for the drill stem. It located within the drill string that allow for free-passage of drilling fluid without pressure loss and are specifically designed for effective control of blow outs and/or mud loss control. The kelly valve is divided into upper kelly cock valve and lower kelly cock valve. The upper kelly cock is connected between lower end of swivel and upper end of kelly; the lower kelly valve is connected between lower end of kelly saver sub. The kelly valve can be opened on or closed off by only turning the special operating wrench at 90° according to indicating direction. During drilling operation, both upper and lower Kelly cocks should be connected to prevent accident during drilling operation.
| Model | O.D.(mm) | Thread connection | I.D. (mm) | (Mpa) |
| XS-86 | 86 | NC26 | 30 | 30,70,105 |
| XS-105 | 105 | NC31 | 40 | 30,70,105 |
| XS-111 | 111 | NC31 | 40 | 30,70,105 |
| XS-121 | 121 | NC38 | 44.5 | 30,70,105 |
| XS-127 | 127 | NC38 | 44.5 | 30,70,105 |
| XS-140 | 140 | NC40 | 57.2 | 30,70,105 |
| XS-XS146 | 146 | 4-1/2 REG | 57.2/44.5 | 30,70,105 |
| XS-159 | 159 | NC46 | 61 | 30,70,105 |
| XS-165 | 165 | NC46 | 61 | 30,70,105 |
| XS-168 | 168 | NC50 | 71.4 | 30,70,105 |
| XS-178 | 178 | NC50,5-1/2 FH | 71.4 | 30,70,105 |
| XS-XS197 | 197 | 6-5/8 REG | 76.2 | 30,70,105 |
| XS-XS200 | 200 | 6-5/8 REG | 76.2 | 30,70,105 |
