API 7K Wellhead Tools Drill Pipe Manual Tongs Type B, DB, C, SB, SDD, LF
Product Details:
| Place of Origin: | China |
| Certification: | API 7K |
| Model Number: | Manual Tongs Type DB,B,LF,SB,SDD,LF,C,WWC,WWB,AAX |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD900-2500/piece |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pairs per month |
|
Detail Information |
|||
| Product Name: | API 7K Wellhead Tools Drill Pipe Manual Tongs Type B, DB, C, SB, SDD, LF | Keywords: | Drill Pipe Manual Tongs |
|---|---|---|---|
| Application: | Oil Drilling Handling Tools | Warranty: | One Year |
| Material: | Alloy Steel, High Manganese Steel | Processing Type: | Forging |
| Apply To Pipe Size: | 2-3/8"----36" | Color: | Red, Or As Required |
| Highlight: | Wellhead Manual Casing Tong,90 KNm Manual Casing Tong |
||
Product Description

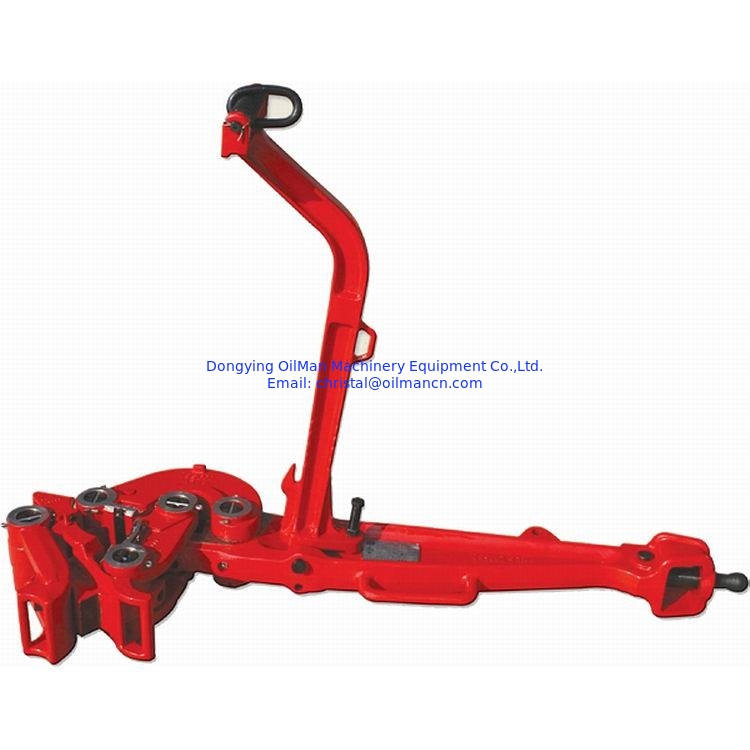

API 7K Wellhead Tools Drill Pipe Manual Tongs Type B, DB, C, SB, SDD, LF
Description of Manual Tongs:
API 7K Wellhead Tools Drill Pipe Manual Tongs Type B, DB, C, SB, SDD, LF
Manual Tongs are necessary tools applied to make up and break out pipes.Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spes 7K Specification for drilling and well servicing equipment.
2.Main Model:DB,B,LF&C etc
3.Size: 2-3/8"----36"
4.Type DB,B,LF,SB,SDD,LF,C,WWC,WWB,AAX,workover Tongs,etc.
Type DB Manual Tongs
| No.of latch Lug Jaws | Latch Step |
Size Range mm(in) |
Rated Torque (kN.m) |
| 1# | 1 | 89-152(31/2-6) | 90 |
| 2 | 114-178(41/2-7) | ||
| 3 | 140-210(51/2-81/4) | ||
| 2# | 1 | 203-244(8-95/8) | |
| 2 | 244-286(95/8-111/4) | ||
| 3# | 1 | 298-324(113/4-123/4) | 55 |
| 2 | 340-365(133/8-143/8) | ||
| 4# | 2 | 406-432(16-17) |
Type SB Manual Tongs
| No.of latch Lug Jaws | Latch Step | Size Range |
Rated Torque kN·m |
|
| in | mm | |||
| 1# | 1 | 3.1/2-4.1/8 | 88.9-104.78 | 75 |
| 2 | 4.1/8-5 | 104.78-127 | ||
| 2# | 1 | 4.1/4-5.1/4 | 107.95-133.35 | |
| 2 | 5-5.3/4 | 127-146.05 | ||
| 3 | 6-6.3/4 | 152.4-171.45 | ||
| 3# | 1 | 6.5/8-7.1/4 | 168.28-184.15 | 75 |
| 2 | 7.3/8-8 | 187.33-203.2 | ||
| 3 | 8.1/2-9 | 215.9-228.6 | ||
| 4# | 1 | 9-9.5/8 | 228.6-244.48 | 55 |
| 2 | 10.5/8-10.3/4 | 269.88-273.05 | ||
| 5# | 1 | 11.3/4 | 298.45 | |
| 6# | 1 | 12.3/4-13 | 323.85-330.2 | 40 |
| 7# | 1 | 13.3/8 | 339.73 | |
| Type C Manual Tongs | |||||
| No. of Latch Lug Jaws | Short Jaw | Hinge Jaw | Handling O.D | Rated Torque | |
| (mm) | (in) | KN•m | |||
| 1# | 2 3/8-7 | - | 60-93 | 2 3/8-3.668 | 48 |
| 2# | 73-108 | 2 7/8-4 1/4 | |||
| 3# | 89-133 | 3 1/2-5 1/4 | |||
| 4# | 133-178 | 5 1/4-7 | |||
| 5# | 7 3/8-10 3/4 | 7-8 5/8 | 178-219 | 7-8 5/8 | |
| 6# | 9 5/8-10 3/4 | 244-273 | 9 5/8-10 3/4 | ||
Products Show:
We also can supply all petroleum handling tools including : B, SB, DB, SDD, LF, TC, Workover, WWC, WWB, AAX type manual tong, Q13 3/8-8 casing, Extended casing tong, manual tong, Elevator Type DD, Elevator Type DDZ, Elevators Type CDZ, Elevator Type TA. Elevators Type CD, Elevator Type SX, Elevators Type SLX. Y Series Slip Type Elevators elevator, slip, Spider, Bushing, manual tong, Elevator links products.
