API Standard Fishing Tools Releasing Circulation Junk Basket For Drilling Rig
Product Details:
| Place of Origin: | China |
| Certification: | API 7-1 |
| Model Number: | LL Type |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD150-1000/pc |
| Packaging Details: | Export Wooden Case |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 300 pcs per month |
|
Detail Information |
|||
| Product Name: | API Standard Fishing Tools Releasing Circulation Junk Basket For Drilling Rig | Keywords: | Reverse Circulation Junk Basket |
|---|---|---|---|
| Application: | Downhole Tools For Drilling | Diameter: | 89~381mm |
| Connection: | NC26, NC31,NC38,NC50,6 5/8 REG, 7 5/8 REG | Material: | Alloy Steel |
| Highlight: | NC50 Junk Basket Fishing Tool,NC38 Junk Basket Fishing Tool |
||
Product Description

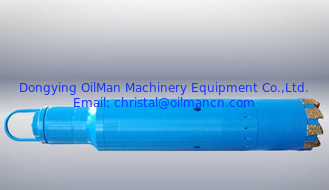

API Standard Fishing Tools Releasing Circulation Junk Basket For Drilling Rig

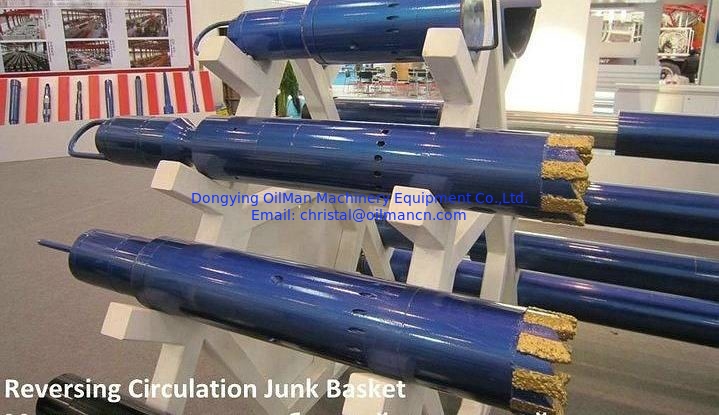

Descriptions of Reverse Circulation Junk Basket:
Reverse Circulation Junk Basket (RCJB) is designed to remove all types of small junk objects from the hole. The tool’s main feature eliminates pulling a wet string. Even when the tool is fitted with a magnet insert, reverse circulation is maintained.
Operation
Reverse Circulation Junk Basket is made up to the bottom of the fishing string and lowered to a point within several feet from the bottom of the hole. Begin circulation to wash the hole. Stop circulation and drop the steel ball. (When the steel ball is dropped into the valve seat, circulation fluid travels outward and downward through the inner passage of the barrel and out through the vents in the lower end. The fluid is then deflected to the center of the tool and up through the return holes in the upper end of the barrel. This reverse fluid circulation carries the junk into the barrel above the junk catcher.) Begin circulation again, slowly rotating while lowering the tool until a 10” core has been cut. Stop rotation and circulation and pull the tool from the hole.
Technical Specfications for Reverse Circulation Junk Basket:
| Type | Max. O.D. | Steel Ball O.D | Connection | Hole Size Range | OAL |
| (mm/inch) | (mm/inch) | API | (mm/inch) | (mm/inch) | |
| LL146 | 151(5-15/16) | 35(1-3/8) | NC38 | 155.6~165.1(6-1/8~6-1/2) | 1376(54-11/64) |
| LL200 | 205(5-5/64) | 43(1-11/16) | NC50 | 212.7~241.3(6-1/8~6-1/2) | 1766(69-17/32) |
| LL257 | 257(10-1/8) | 48(1-57/64) | 6-5/8REG | 273~295.3(10-3/4~11-5/8) | 1770(69-11/16) |
| LL280 | 286(11-1/4) | 48(1-57/64) | 6-5/8REG | 298.5~311.2(11-3/4~12-1/4) | 1846(72-43/64) |
| LL381 | 381(15) | 60(2-23/64) | 7-5/8REG | 406.4~444.5(16~17-1/2) | 1780(70-5/64) |
| When ordering or requesting quotation, if size out of above specification, pls specify clearly. | |||||
Complete fishing tools we supply:
We provide all kinds of fishing tools at various sizes. The fishing tools are produced and inspected strictly under API Spec 7, including Safety Joint, Fishing Magnet, Overshots, Releasing Spear, Fishing Jar (3 1/2" to 9 1/2" OD), Fishing Multifunction, Casing Spear, Taper Taps, Die Collars, Jar Intensifier (3 1/2" to 9 1/2" OD), Junk Sub, Hydraulic Junk Retriever, Mill Shoes, Reverse Circulating Junk Basket etc.
If any needs, pls contact us freely:
