Steel Heavy Duty Wire Rope 5-50mm Wire Gauge API 9A Standard For Offshore
Product Details:
| Place of Origin: | China |
| Certification: | API 9A |
| Model Number: | All types |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 meter |
|---|---|
| Price: | USD3-60/m |
| Packaging Details: | Plastic reel, wooden wheel and wooden pallet |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 50000 meters per month |
|
Detail Information |
|||
| Product Name: | API 9A Standard Heavy Duty Steel Wire Rope For Offshore,Mining,Crane,Cableways | Keywords: | API Steel Wire Rope |
|---|---|---|---|
| Application: | Hoisting, Ing, Lifting, Towing, Port Load And Unload, Blast Furnace Hoisting And Oil Well Drilling | Warranty: | One Year |
| Wire Gauge: | 5-50mm | Surface: | Glossy, Galvanised Zinc, Hot-dip Galvanized, PVC |
| Tensile Strength: | 1570 1670 1770 1870 1960 2160 MPa | Material: | 45# /60#/70#High Carbon Steel |
| Highlight: | Heavy Duty Wire Rope API 9A,50mm Heavy Duty Wire Rope,5mm heavy duty steel cable |
||
Product Description
API 9A Standard Heavy Duty Steel Wire Rope For Offshore,Mining,Crane,Cableways
Description of API 9A Drilling Line/Steel Wire Rope:
Petroleum Drill Lines are produced and tested in accordance with latest edition of API SPEC 9A" Specification for Wire Rope" . The wire rope is linear contacted and have high strength.
Main Applications: Various equipment for hoisting, ing, lifting, towing, port load and unload, blast furnace hoisting and oil well drilling. The rope with wire core can be used under the shock load, heated and squeezed conditions.
It is widely used in oil field of both land and ocean such as drilling lines, rod and tubing pull lines, horses head pumping unit lines, winch lines, and so on.
Rope type:6×19(a)
Rope Size: 12-42mm
Common Steel Wire Rope Construction
1×7,1×19, 6×7+FC, 7×7, 6×12+7FC, 6×15+7FC, 6×24+7FC
6×19+FC,6×19+IWRC, 6×19+IWS(7×19), 6×37+FC, 6×37+IWRC
6×19S+FC, 6×19S+IWRC, 6×19W+FC 6×19W+IWRC,
6×25Fi+FC, 6×25Fi+IWRC, 6×26SW+FC, 6×26SW+IWRC
6×29Fi+FC, 6×29Fi+IWRC, 6×31SW+FC, 6×31SW+IWRC,
6×36SW+FC 6×36SW+IWRC, 6×61+FC
18×7+FC, 19×7, 18×19+FC, 34×7+FC, 35W×7
8×19+FC, 8×19S+FC,8×19S+IWR and so on.
Technical Data of Our Oilfield Wire Rope
| Type | Diam. | Met. area | Met. | Outer Wire | IPS | EIPS | |
| in. | mm. | mm2 | kg/m | mm | kN | kN | |
| 18x7+FC | 1/2 ~1 1/2 | 13.0~38.0 | 81~694 | 0.64~5.79 | 0.86~2.50 | 88~751 | 96~826 |
| 19x7 | 1/2 ~1 1/2 | 13.0~38.0 | 86~733 | 0.67~6.07 | 0.86~2.50 | 88~751 | 96~826 |
| 6x27H+IWRC | 1~1 7/8 | 26~48 | 303~1031 | 2.81~9.90 | 1.86~3.43 | 439~1490 | 484~1640 |
| 6x30G+IWRC | 1~2 | 26~52 | 303~1210 | 2.81~11.20 | 1.86~3.71 | 439~1680 | 484~1840 |
| 8x19S+FC | 1/2~1 1/8 | 13.0~29.0 | 82~410 | 0.70~3.56 | 0.86~1.92 | 90~443 | 104~507 |
| 6x36SW+FC | 3/4~2 | 19~52 | 146~1095 | 1.41~10.00 | 1.06~2.90 | 212~1420 | 233~1560 |
| 6x36SW+IWRC | 3/4~2 3/8 | 19~60 | 172~1711 | 1.55~15.50 | 1.06~3.35 | 228~2130 | 262~1970 |
| 6x29Fi+FC | 3/4~2 | 19~52 | 148~1111 | 1.41~10.00 | 1.06~2.90 | 212~1420 | 233~1560 |
| 6x29Fi+IWRC | 3/4~2 1/8 | 19~54 | 173~1396 | 1.55~12.40 | 1.06~3.01 | 228~1710 | 262~1970 |
| 6x31SW+FC | 3/4~2 | 19~52 | 146~1093 | 1.41~10.00 | 1.21~3.30 | 212~1420 | 233~1560 |
| 6x31SW+IWRC | 5/8~1 7/8 | 16~48 | 119~1072 | 1.07~9.67 | 1.17~3.51 | 159~1350 | 183~1360 |
| 6x26SW+FC | 3/4~1 7/8 | 19~48 | 142~909 | 1.41~8.80 | 1.39~3.51 | 212~1250 | 233~1220 |
| 6x26SW+IWRC | 5/8~1 7/8 | 16~48 | 119~1072 | 1.07~9.67 | 1.17~3.51 | 159~1350 | 183~1360 |
| 6x25Fi+FC | 7/8~2 | 22.0~48.0 | 198~1291 | 2.11~11.00 | 1.40~3.30 | 308~1630 | 354~1550 |
| 6x21S+FC | 1/2~2 | 13~52.0 | 68~1091 | 0.63~10.00 | 0.96~3.85 | 95~1420 | 105~1050 |
| 6x19S+FC | 1/2~1 3/4 | 13.0~45.0 | 68.7~823.0 | 0.63~7.66 | 1.03~3.58 | 95~1100 | 105~898 |
| 6x19S+IWRC | 1/2~1 3/4 | 13.0~45.0 | 80.7~967.5 | 0.68~8.44 | 1.03~3.58 | 102~1180 | 118~1010 |
| 6x7+FC | 3/8~7/8 | 9.50~22.00 | 33.1~177.6 | 0.31~1.71 | 1.00~2.35 | 52.1~273.0 | - |
| 5x7+FC | 3/16~5/16 | 4.76~7.94 | 8.3~23.1 | 8.01~22.17 | 0.57~0.95 | 13.8~37.8 | - |
| 5x5+FC | 5/32~5/16 | 3.97~7.94 | 5.8~23.1 | 5.15~20.54 | 0.60~1.19 | 8.9~34.7 | - |

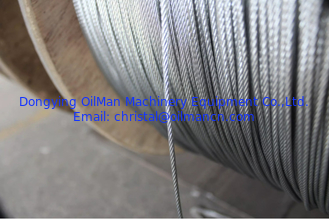

Products Show:
API 9A Standard Heavy Duty Steel Wire Rope For Offshore,Mining,Crane,Cableways
Factory Workshop:
FAQ:
How can I place order?
A: You can contact us by email about your order details, or place order on line.
How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T , L/C, Western Union are the most usual ways we are using. If you want to use other way, please tell me, we can discuss.
What’s the order procedure?
A: First we discuss order details, production details by email, Whats app or Wechat. Then we issue you an PI for your confirmation. You will be requested to do pr-epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15 days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
What’s the warranty period?
A: Warranty for one year after delivery except wearing parts.
How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
