Drill Pipe Strainer Drill Pipe Screens 304 Stainless Steel Drill Pouched Pipe Filter
Product Details:
| Place of Origin: | China |
| Certification: | API |
| Model Number: | Drill Pipe Screen Filters |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | USD10-100/pc |
| Packaging Details: | Export wooden case |
| Delivery Time: | 20-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 3000 pieces per month |
|
Detail Information |
|||
| Product Name: | Drill Pipe Strainer Drill Pipe Screens 304 Stainless Steel Drill Pouched Pipe Filter | Keywords: | Drill Pipe Screen Filters |
|---|---|---|---|
| Application: | Oil Well Drilling | Warranty: | One Year |
| Material: | Stainless Steel 304, 316 | Type: | Drill Pipe |
| Highlight: | 304 Stainless Steel Drill Pipe Strainer,Drill Pipe Strainer Retrievable |
||
Product Description
Drill Pipe Strainer Drill Pipe Screens 304 Stainless Steel Drill Pouched Pipe Filter
Description of drill pipe screens:
Drill pipe screen is commonly known as the rod filter.
Drill pipe screen,used to filter the drilling fluid and protect the MWD instrument in the petroleum drilling,is suitable to filter the drilling fluid of the petroleum an geological drilling. It is composed of the connector and filter screen.The connector is empty and only has a ledge.The filter screen is in the ledge of the connector.It is placed under the drill rod and replaces the former connector.In the circulation of drilling fluid, the impurities are filtered by the filter screen of the connector.The drilling fluid is cleaned, preventing the impurities from blocking the water hole.
The specifications include the 5-1/2, 5, 4-1/2, 3-1/2 and 2-7/8 inches.
Specification of high quality stainless steel drill pipe screens
a. Material: 304 & 316 stainless
b. Perforation: 3/16” hole on 5/16” stagger
c. Retrievable with standard overshot
d. Interchangeable ring flanges
e. 33% open area perforation
f. Internal wear distribution sleeve
g. Full length safety retaining rod
|
Drilling pipe type
|
Max. OD | Filter diameter | Filter open diameter | Length |
| mm | mm | mm | mm | |
| NC46(4”IF)-42G | 92 | 78 | 6 | 800 |
| NC46(4”IF)-42S | 92 | 72 | 6 | 800 |
| NC50(4 1/2”IF)-52G | 98 | 90 | 6 | 1000 |
| NC50(4 1/2”IF)-52S | 98 | 64 | 6 | 1000 |
| NC50(4 1/2”IF)-53S | 98 | 72 | 6 | 1000 |
| NC50(4 1/2”IF)-62G | 98 | 78 | 6 | 1000 |
| NC50(4 1/2”IF)-62S | 98 | 65 | 6 | 1000 |
| NC50(4 1/2”IF)-63G | 98 | 65 | 6 | 1000 |

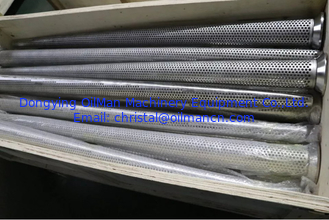

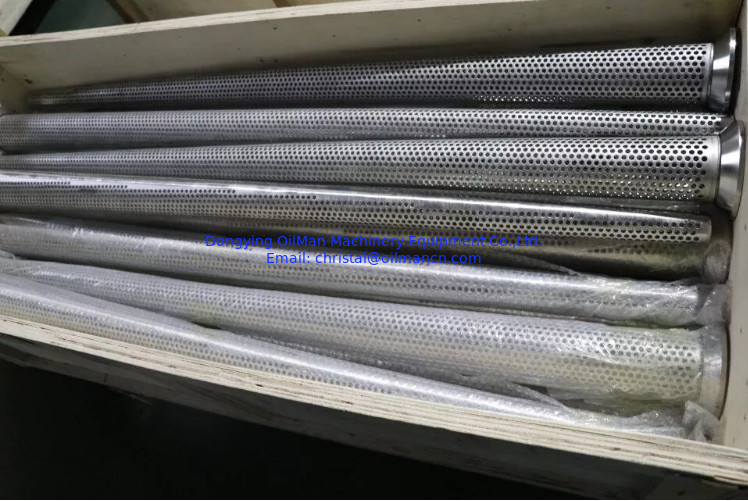

Packaging & Shipping:
