Tubing Pup Joint for adjusting downhole tools depth
Product Details:
| Place of Origin: | China |
| Certification: | API 5CT |
| Model Number: | Pup Joints |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pcs |
|---|---|
| Price: | USD20-200/pc |
| Packaging Details: | Export wooden case |
| Delivery Time: | 20-30 days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Product Name: | Seamless Tubing Pup Joint 2-7/8" 6.5 PPF J-55 EUE 8RD C/W Coupling & Thread Protector | Keywords: | Casing Pup Joint, Tubing Pup Joint |
|---|---|---|---|
| Application: | Oil Well Drilling | Size: | 1.05"- 20" |
| Highlight: | Tubing Pup Joint,Downhole Tubing Pup Joint,Adjusting Depth casing pup joint |
||
Product Description

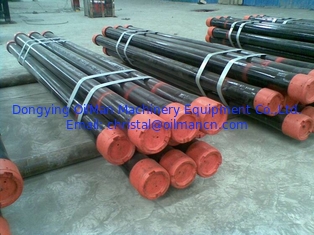

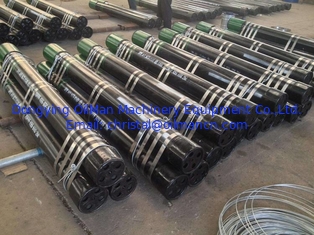

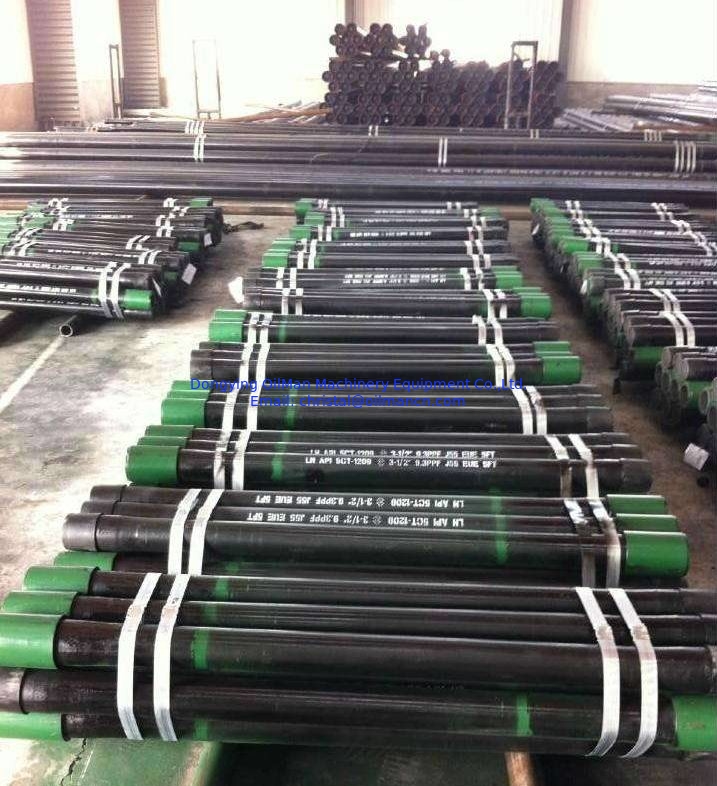

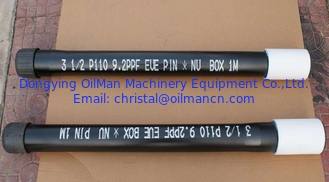

Seamless Tubing Pup Joint 2-7/8" 6.5 PPF J-55 EUE 8RD C/W Coupling & Thread Protector
Pup Joints are used to adjust the height of full length tubing or casing strings. They are also used to adjust the depth of downhole tools. Pup Joint sets are available in: Integral Premium Thread Box-by-Pin Pin-by-Pin with couplings boxed separately Pin-by-Pin with couplings hand tight Pin-by-Coupling Box Flush joint connections.
| Specification of tubing pup joint | ||||
| TUBING PUP JOINT | OD | GRADE | END TYPE | LENGTH (FT) |
| 2 3/8” | J/K/L/N/P | NUE/EUE | 2/3/4/5/6/8/10/12 | |
| 2 7/8” | J/K/L/N/P | NUE/EUE | 2/3/4/5/6/8/10/12 | |
| 3 1/2” | J/K/L/N/P | NUE/EUE | 2/3/4/5/6/8/10/12 | |
| 4 1/2” | J/K/L/N/P | NUE/EUE | 2/3/4/5/6/8/10/12 | |
| Specification of casing pup joint | |||
| CASING PUP JOINT | OD | GRADE | END TYPE |
| 4 1/2” | J/K/L/N/P | LTC/STC/BTC | |
| 5” | J/K/L/N/P | LTC/STC/BTC | |
| 5 1/2” | J/K/L/N/P | LTC/STC/BTC | |
| 6 5/8” | J/K/L/N/P | LTC/STC/BTC | |
| 7” | J/K/L/N/P | LTC/STC/BTC | |
| 7 5/8” | J/K/L/N/P | LTC/STC/BTC | |
| 7 3/4” | J/K/L/N/P | LTC/STC/BTC | |
| 8 5/8” | J/K/L/N/P | LTC/STC/BTC | |
| 9 5/8” | J/K/L/N/P | LTC/STC/BTC | |
| 10 3/4” | J/K/L/N/P | LTC/STC/BTC | |
| 11 3/4” | J/K/L/N/P | LTC/STC/BTC | |
| 13 3/8” | J/K/L/N/P | LTC/STC/BTC | |
| Specification | O.D(mm) | W.T(mm) | Thread type | Steel grade | Length |
| 4-1/2 | 114.30 | 6.35 | STC,LTC,BTC | J55,N80,P110 | 0.5m-5m |
| 5 | 127.00 | 7.52 | STC,LTC,BTC | J55,N80,P110 | |
| 5-1/2 | 139.70 | 7.72 | STC,LTC,BTC | J55,N80,P110 | |
| 6-5/8 | 168.28 | 8.94 | STC,LTC,BTC | J55,N80,P110 | |
| 7 | 177.80 | 8.05 | STC,LTC,BTC | J55,N80,P110 | |
| 7-5/8 | 193.68 | 8.33 | STC,LTC,BTC | J55,N80,P110 | |
| 8-5/8 | 219.08 | 10.16 | STC,LTC,BTC | J55,N80,P110 | |
| 9-5/8 | 244.48 | 10.03 | STC,LTC,BTC | J55,N80,P110 | |
| 10-3/4 | 273.05 | 11.43 | STC,LTC,BTC | J55,N80,P110 | |
| 11-3/4 | 298.45 | 12.42 | STC,LTC,BTC | J55,N80,P110 | |
| 13-3/8 | 339.72 | 12.19 | STC,LTC,BTC | J55,N80,P110 | |
| 16 | 406.40 | 12.57 | STC,LTC,BTC | J55,N80,P110 | |
| 18-5/8 | 473.08 | 11.05 | STC,LTC,BTC | J55,N80,P110 | |
| 20 | 508.00 | 12.70 | STC,LTC,BTC | J55,N80,P110 |
