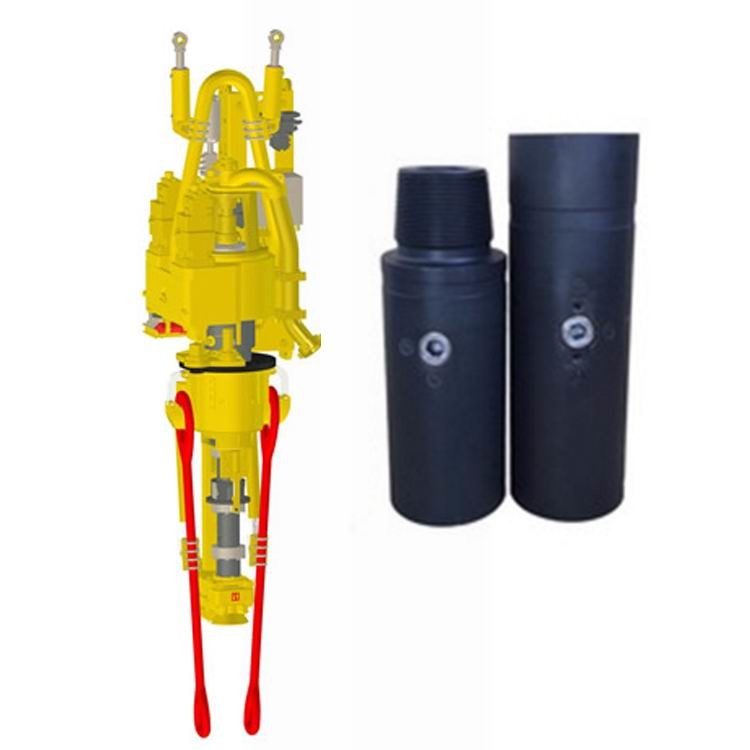

Canrig JH NOV Varco TDS9, TDS 10SA, TDS11SA Top Drive Spare Parts For Drilling Rig
Product Details:
| Place of Origin: | China |
| Certification: | API |
| Model Number: | JH TESCO CANRIG VARCO TDS 11SA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | USD800-10000/pc |
| Packaging Details: | Export wooden case |
| Delivery Time: | 25-30 work days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000 pieces per month |
|
Detail Information |
|||
| Product Name: | Canrig JH NOV Varco TDS9, TDS 10SA, TDS11SA Top Drive Spare Parts For Drilling Rig | Keywords: | NOV Varco Top Drive Spare Parts |
|---|---|---|---|
| Application: | Oil Drilling | Warranty: | One Year |
| Processing Type: | Forging | Size: | As Customer Request Or As Drawing |
| Highlight: | Varco Top Drive System Components,NOV Top Drive System Components,NOV Varco top drive assembly |
||
Product Description
Canrig JH NOV Varco TDS9, TDS 10SA, TDS11SA Top Drive Spare Parts For Drilling Rig
Description of Top Drive Spare Parts:
Top drive is a key components combing the function of swivel and kellly drilling system,in contrast to kelly and rotary table drilling system, which drives the drill string from the top end . In contrast to the kelly drilling system , it provides many advantage such as more drill pipe handling height which due to higher safety factor during complicated wellbore condition, capacity of drilling triples which lead to shorter connecting time and higher drilling efficiency, longer ream and backream height to increase the safety during handling of downhole complexity.
Function
The faucet flushing packing system reduces the effective differential pressure by providing pressurized lubricant to the low pressure side of the seal to increase seal life. The pressure of the high-pressure lubricating oil is predetermined according to the proportion of the mud. The value is between the mud pressure and the atmospheric pressure. Usually, each sealing ring is subjected to the same pressure difference. The pressure of the lubricating oil is generally lower than the mud pressure, preventing the lubricating oil from excessive pressure and leaking.
We are the professional top drive provider with business of repair,on-site operation&maintenance,lease and technical training.
We can supply spare parts for Varco,Canrig,Tesco,MH,BPM and so on.
| № | Part Name | Catalog Varco No. |
| 1 | DIE,TONG | 16401-2 |
| 2 | CAPSCREW SOCKET HEAD FOR PIPEHANDLER | 50108-16-С |
| 3 | REPAIR KIT, UPPER IBOP, PH-50 STD | 114859 |
| 4 | REPAIR KIT, LOWER IBOP STD & NAM | 99498-2 |
| 5 | FITTING,GREASE STRAIGHT | 53219-2 |
| 6 | FITTING,GREASE | 53209 |
| 7 | NUT,HEX-HEAVY(UNC-2B) | 50412-C |
| 8 | SAFETY WIRE,SOLD IN CANS 143' LONG | Z6001-CAN |
| 9 | SHIELD,BEARING, SMALL BORE, TDS 4S | 30154362 |
| 10 | LINER, UPPER STEM | 98290 |
| 11 | SEAL, OIL | 91250-1 |
| 12 | VALVE | 141304 |
| 13 | Ring, Snap | 30123562 |
| 14 | Disc Brake | 109528-6 |
| 15 | BUSHING,SLEEVE,1.0x1.25 | 115176 |
| 16 | SEAL, PISTON -S2 | 72219 |
| 17 | SEAL, ROD - S2 | 72220 |
| 18 | RING, WIPER - S2 | 72221 |
| 19 | PUMP,PIDTON | 109542 |
| 20 | HEAT EXCHANGER, OIL | 30122104 |
| 21 | WASH PIPE,3 BORE | 30123289 |
| 22 | RETAINER ,DIE | 124935 |
| 23 | SCREW, CAP-HEX HAD | 50012-16-С5D |
| 24 | WASHER, LOCK-REGULAR | 50912-С |
| 25 | SAFETY WIRE | Z6000.6-CAN |
| 26 | U-BOLT,350T | 119139 |
| 27 | CRANK ASSEMBLY IBOP | 98898 |
| 28 | RING THTUST | 30119357 |
| 29 | BUSHING TURCITE | 119358 |
| 30 | GLYD RING ROTARY 10.00 ROD | 118375 |
| 31 | RETAINER RING | 30117775 |
| 32 | (MT) Belt, timming | 120117-3 |
| 33 | LINK1,COLLAPSIBLE | 30170445 |
| 34 | Assy, upper IBOP, 65/8*65/8, PH50, H2S | 110103-502 |
| 35 | LOWER IBOP, H2S 6 5/8 X 6 5/8 ASSY | 114706-502 |
| 36 | U-BOLT,500T | 30122367 |
Product Show:
Varco 11SA top drive wash pipe, P/N 30123289
Varco Gooseneck pipe, P/N 117063-7500
Lower IBOP, P/N 114706-502
Pump, P/N 109542
Pressure Switch, P/N 76841
Tong Die, P/N 16401-2
